About
  • Anitra combines experience in Wildlife Research, Conservation, and Telemetry with a strong IT and Data Analysis background
  • We provide top quality telemetry solutions for even very demanding wildlife research and conservation projects
  • Our prices and simplicity of use make the telemetry accessible to more and more people
  • Our hardware flexibly uses wide range of comunication technology to deliver data (UHF/VHF, GSM or IoT protocols)
  • The first commercial products and services under the Anitra brand were introduced In 2017
About
GPSGSM

Anitra GPS-GSM technology

a solar-powered GPS-GSM transmitters designed to track animals worldwide

  • for animals moving in areas with GSM network coverage
  • smallest models from 9g
  • data transfer, configuration, and upgrades over the mobile network
  • the best prices in the sector of GPS-GSM devices
Solar-powered

Solar-powered

  • highly-efficient solar pannels
  • powerfull batteries
  • optimized energy management
GSM communication

GSM communication

  • switching data and SMS channels
  • global coverage
  • inexpensive communication fees
Sensors and data

Sensors and data

  • GPS and sensor data
  • activity and mortality triggered data
  • high resolution data sampling
Shapes and sizes

Shapes and sizes

  • various shapes and colors
  • backpack, collars or rings
  • weight from 9g
GPSGSM
GPSGSM

GPS-GSM Backpacks

a traditional type of mount for birds

  • available in a wide range of sizes from the tiny S to the large XL models
  • handles optimized for comfortable deployment
  • variants with extended solar area available for all the sizes
  • case color upon customer request (most frequently used: dark brown, grey and white)

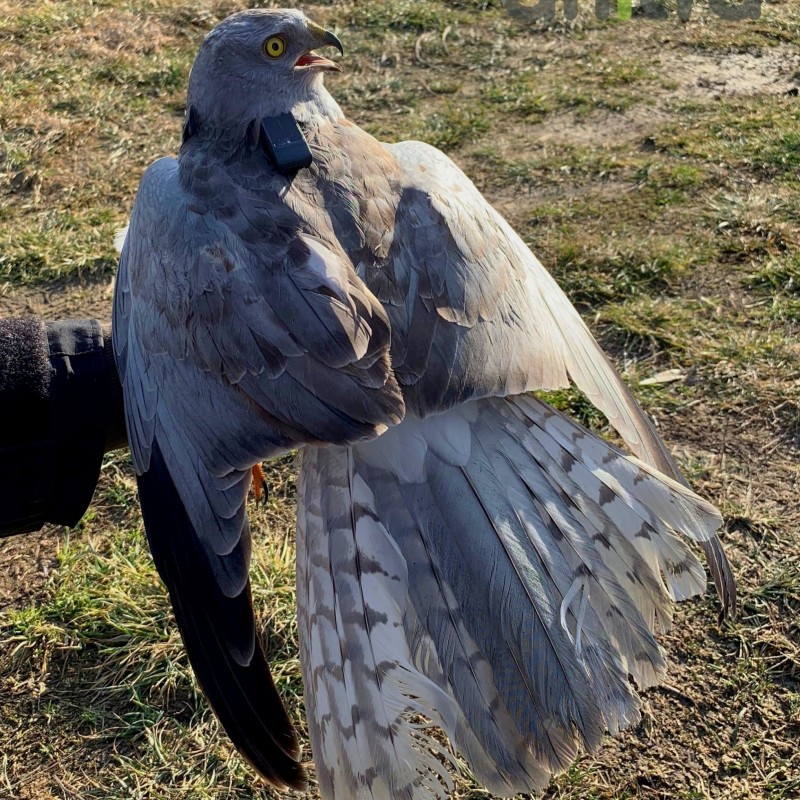

BACKPACK S

10g
45 x 18 x 13 mm
harrier, kestrel

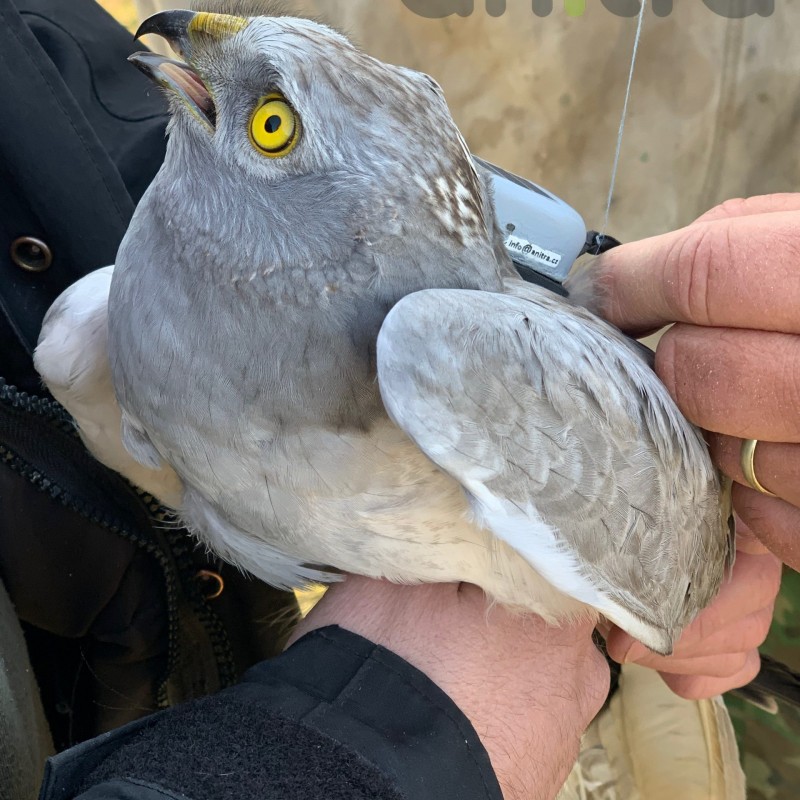

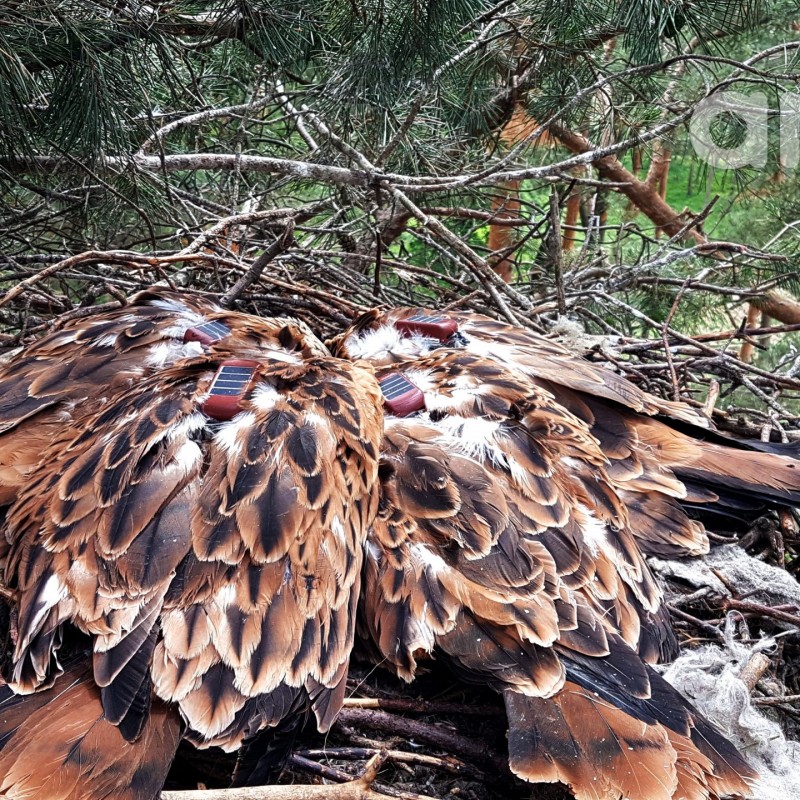

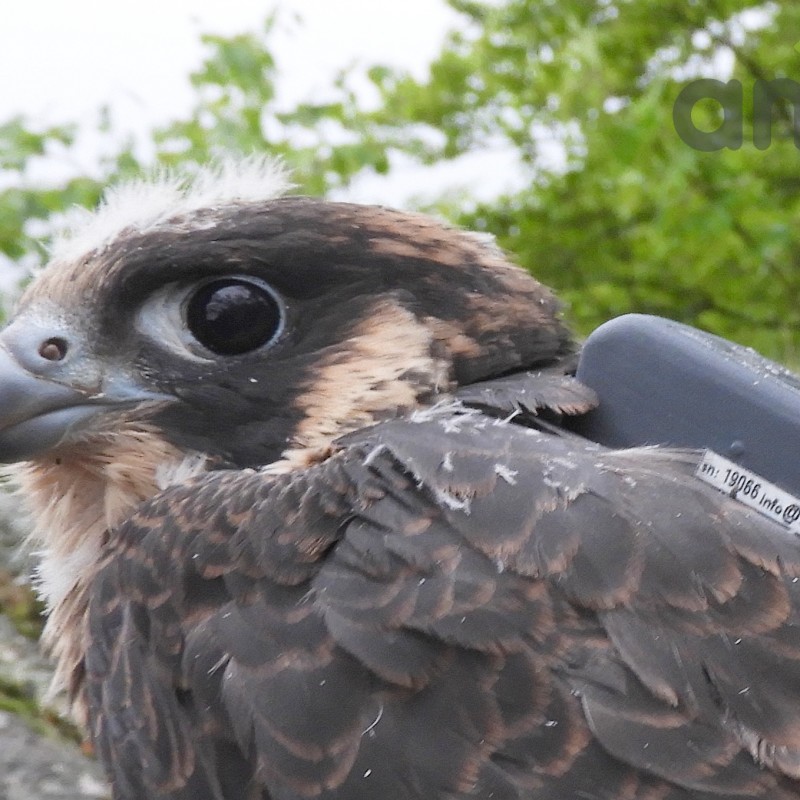

BACKPACK M

16-18g
53 x 28 x 15-25 mm
falcon, kite, buzzard

BACKPACK L

30g
65 x 34 x 26 mm
eagle, stork, eagle owl

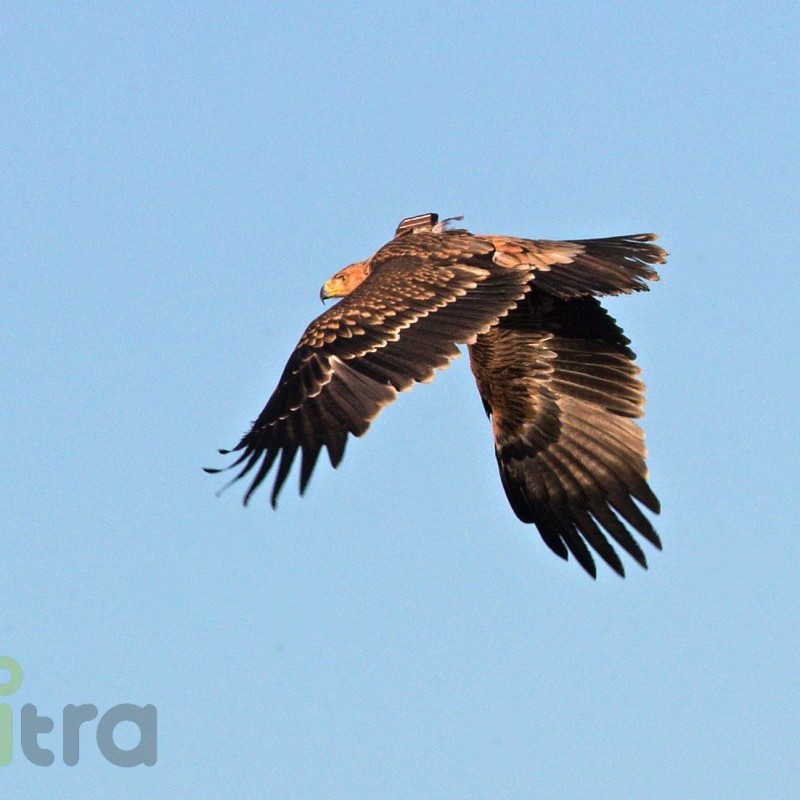

BACKPACK XL

50g
86 x 34 x 34 mm
vulture, eagle, stork

GPSGSM
GPSGSM

GPS-GSM Rings

our ring shaped transmitters make telemetry easy and accessible for any ringer again

  • models designed for long-legged birds and large raptors
  • straight forward and easy to apply closing / locking mechanism
  • extended solar panel area to collect enough light even for short legged birds
  • flexible color choice including to complment existing CR schemes
  • possibility of custom alphanumeric color coding to identify individuals

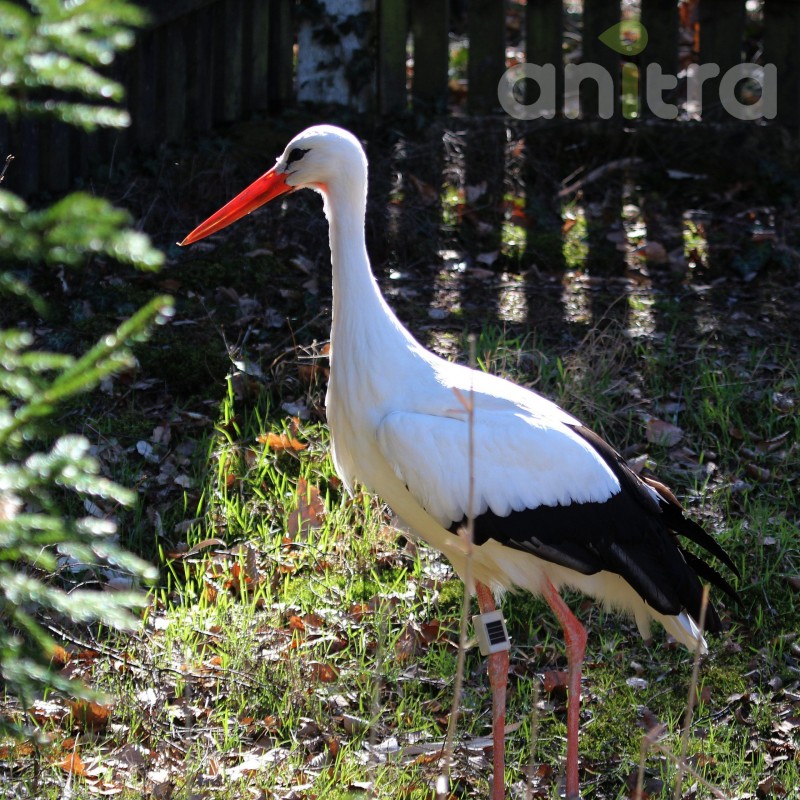

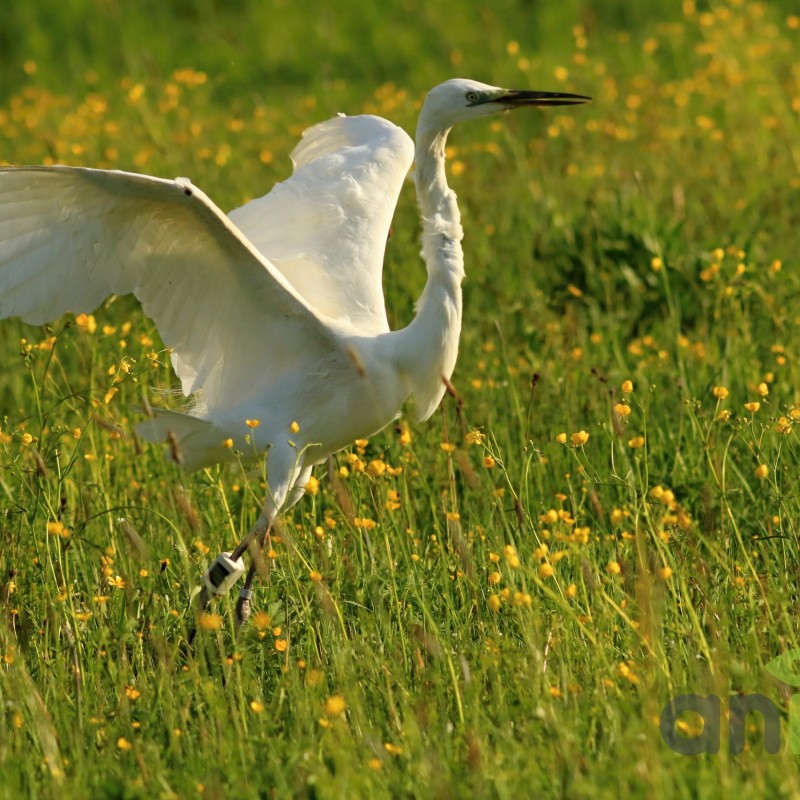

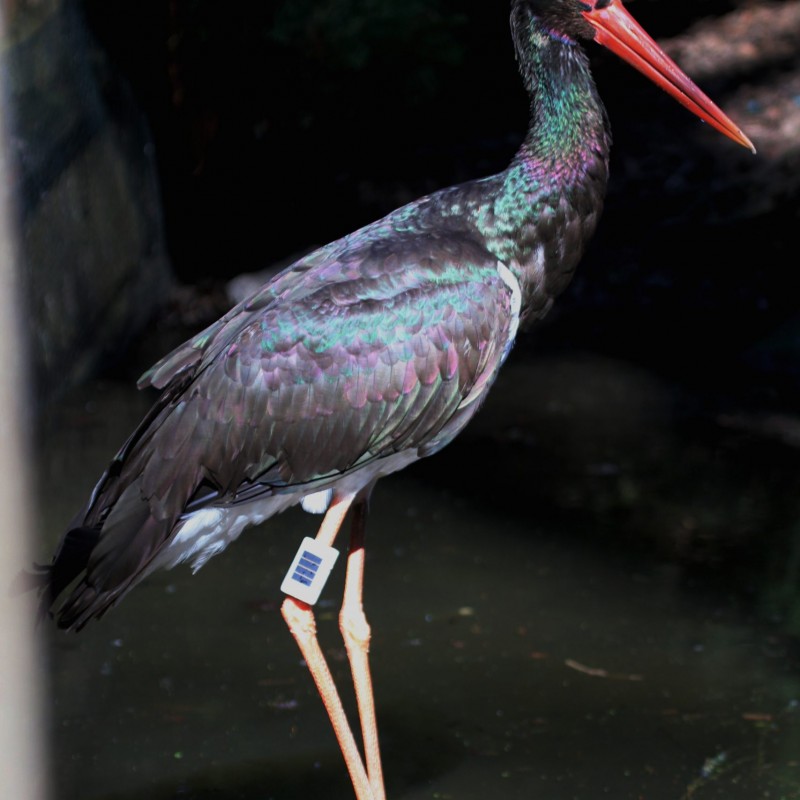

RING-V 13-17mm

32 x 42 x 52 mm
Ø: 17 x 19 mm
30-37g
stork, egret, heron

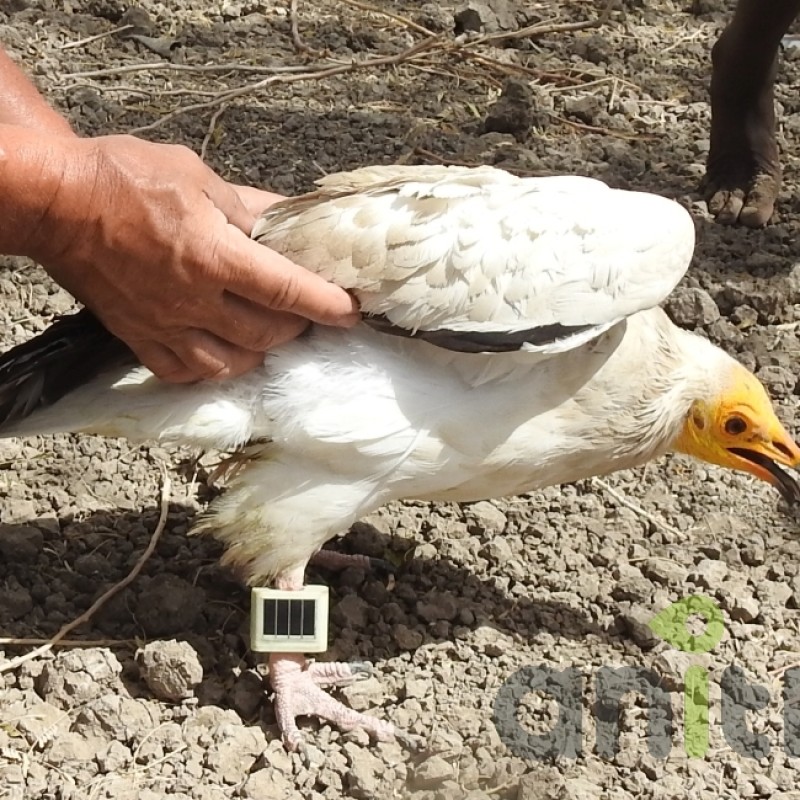

RING-U 21mm

45 x 35 x 55 mm
Ø: 21×21 mm
44-47 g
crane, steppe eagle

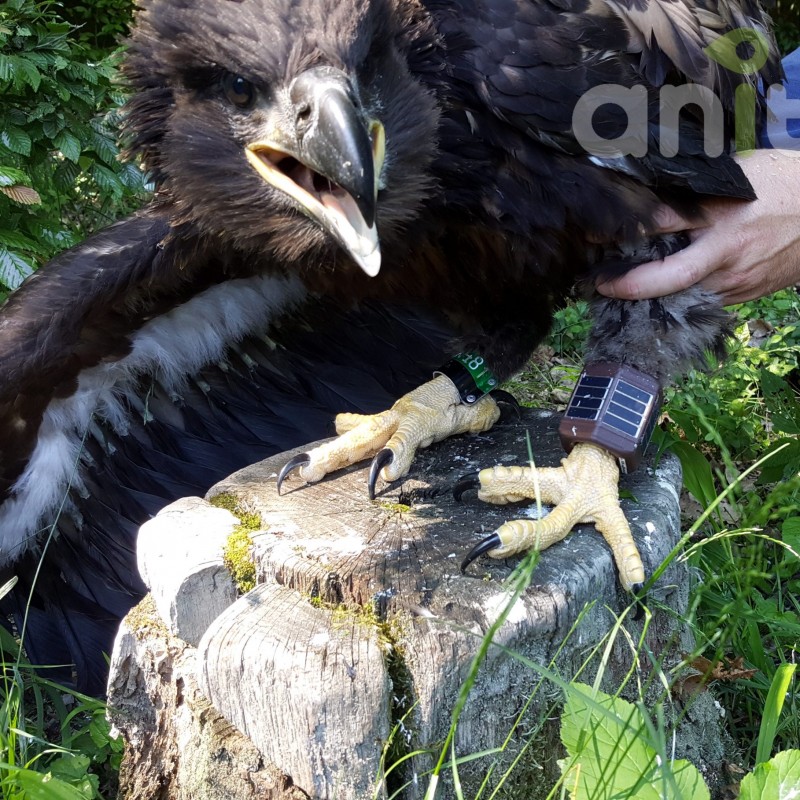

RING-O 26mm

45 x 45 x 55 mm
Ø: 25 x 24-26 mm
45-50g
WTE, GE

GPSGSM
GPSGSM

Other shapes and options for GPS-GSM

  • solar-powered GPS-GSM transmitters also available in other shapes such as
  • neck collars or patagial wing tags for birds
  • neck collars or ear tags for larger mammals
  • in combination with (UHF/VHF) radio beacon extension
  • for long-distance locating the tag in the open terrain (usufull for checking live animals)
  • for short-distance locating the tag (usufull for recovery in mortality)
  • available for larger models of backpacks or colars
  • either as a fully integrated with main GPS-GSM device (including solar charging and remote control of the beacon)
  • or as an independent beacon only (temporarily) physicaly attached to the main GPS-GSM device
  • the Anitra radio beacon also available as standalone tag - for temporary and inexpensive post-release or nest surveilance
  • in combination with Anitra LoNet radio extension
  • ascting as one of tag types compatible with LoNET (i.e data recollected over GSM network or using basestations)
  • data gathered by basestations stored locally or forwarded over the internet if connection available
  • for more details see the LoNet section
GPSGSM
OUR PROJECTS

Our partners and projects

ANITRA devices and software
help you to monitor and better
understand wildlife behavior.

OUR PROJECTS
NEWS

News

NEWS
Gallery

Our tags in action

Gallery
Anitra platform

ANITRA Platform

a single place for all the projects and devices

  • dashboard for Anitra device pool
  • management of telemetry projects
  • tracked data in maps, timeline, grids, and graphs
  • data feeds from and to other data sources
  • field support functionality
3500

MANAGED DEVICES

6500

TRACKED ANIMALS

70

USED IN COUNTRIES

Anitra platform
Anitra LONET

ANITRA Lonet

Custom IoT network for intensive data collection

  • designed for complex studies
  • a flexible configuration of various types of sensors
  • synchronous data collection
  • ON/OFF line data transfer
Anitra LONET
